思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置

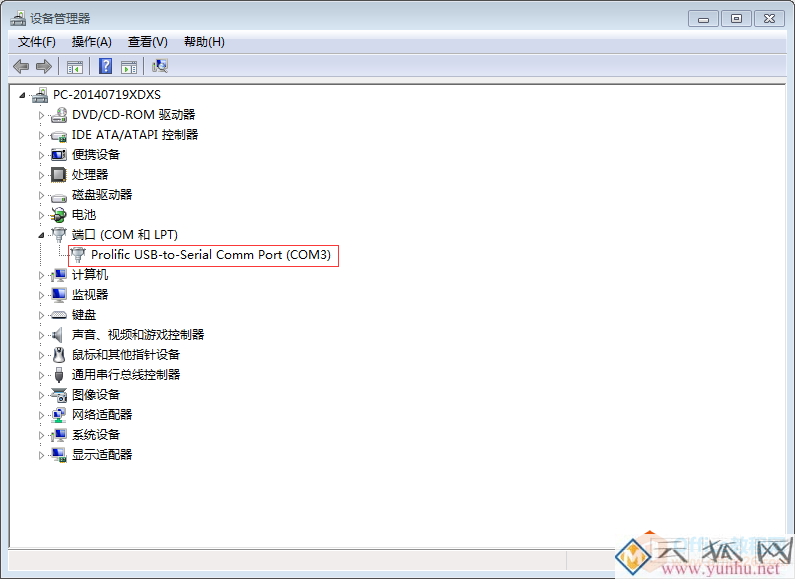

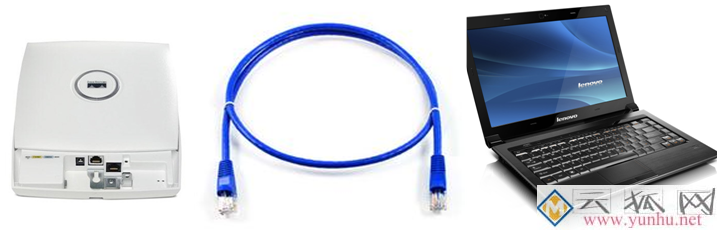

首先将AP连接电脑加电后装好连接线驱动,到设备管理器中查看AP的端口连接的数据如图:

思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置

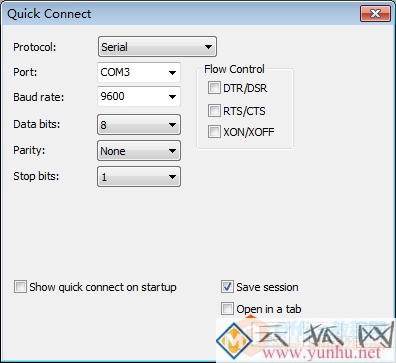

端口设置中数据参数改和设备管理器中的一致,数据刘控制选.

思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置

点击回车可以看见AP说明已经连接好了。如图:

思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置

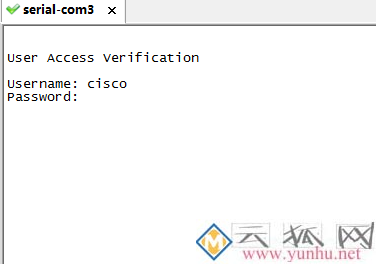

输入用户cisco 密码Cisco 或cisco 密码Cisco,都可以。

思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置

查看版本号 show version。可以看到flash:/c1130-k9w8-mx.124-21a.jhb1。由于是k9w8说明它是瘦AP,瘦AP无法单独使用,需要结合无线控制器,或将瘦AP转换成胖AP

思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置

W8是瘦AP,胖AP是W7

APd0d0.fdbc.e1a0>show version

Cisco IOS Software, C1130 Software (C1130-K9W8-M), Version 12.4(21a)JHB1, RELEASE SOFTWARE (fc1)

Technical Support: http://www.cisco.com/techsupport

Copyright (c) 1986-2010 by Cisco Systems, Inc.

Compiled Wed 11-Aug-10 15:39 by prod_rel_team

ROM: Bootstrap program is C1130 boot loader

BOOTLDR: C1130 Boot Loader (C1130-BOOT-M) Version 12.3(8)JEA, RELEASE SOFTWARE (fc2)

APd0d0.fdbc.e1a0 uptime is 32 minutes

System returned to ROM by power-on

System image file is "flash:/c1130-k9w8-mx.124-21a.JHB1/c1130-k9w8-mx.124-21a.JHB1"

This product contains cryptographic features and is subject to United

States and local country laws governing import, export, transfer and

use. Delivery of Cisco cryptographic products does not imply

third-party authority to import, export, distribute or use encryption.

Importers, exporters, distributors and users are responsible for

compliance with U.S. and local country laws. By using this product you

agree to comply with applicable laws and regulations. If you are unable

to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at:

http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

If you require further assistance please contact us by sending email to

export@cisco.com.

cisco AIR-LAP1131AG-C-K9 (PowerPCElvis) processor (revision B0) with 24566K/8192K bytes of memory.

Processor board ID FCW1431V0JL

PowerPCElvis CPU at 262Mhz, revision number 0x0950

Last reset from power-on

LWAPP image version 6.0.199.4

1 FastEthernet interface

2 802.11 Radio(s)

32K bytes of flash-simulated non-volatile configuration memory.

Base ethernet MAC Address: D0:D0:FD:BC:E1:A0

Part Number : 73-8962-14

PCA Assembly Number : 800-24818-13

PCA Revision Number : A0

PCB Serial Number : FOC142922S6

Top Assembly Part Number : 800-29144-03

Top Assembly Serial Number : FCW1431V0JL

Top Revision Number : A0

Product/Model Number : AIR-LAP1131AG-C-K9

Configuration register is 0xF

进入后发现无法进入configuration t 由于AIR-LAP1131AG-C-K9是瘦AP无法单独使用,需要转换成胖AP才可以。

思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置

需要将AIR-LAP1131AG-C-K9需要刷新成为胖AP,先下载AIR-LAP1131AG-C-K9胖AP的ios。

思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置

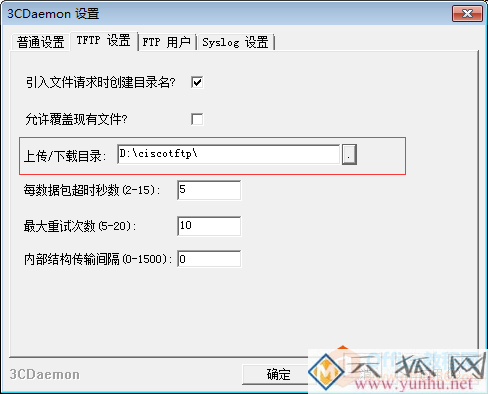

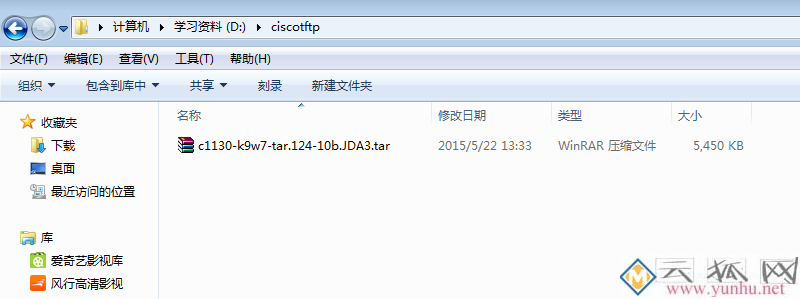

下载完成之后,还需要设置一个TFTP,这里我使用的是3CDaemon的,在D盘设置一个ciscotftp文件夹,留存放上面的AIR-LAP1131AG-C-K9胖AP文件。

思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置

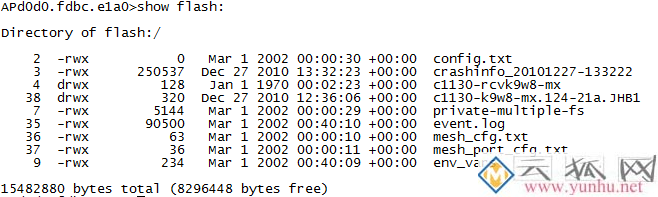

可以看到AIR-LAP1131AG-C-K9现在的使用的ios版本

思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置 思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置

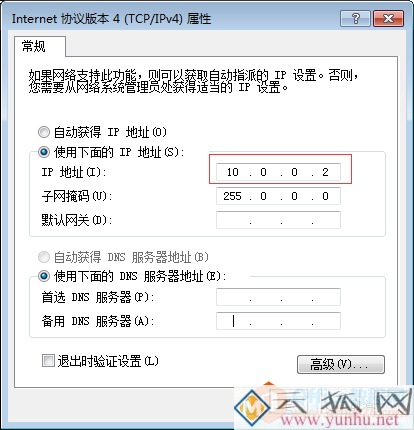

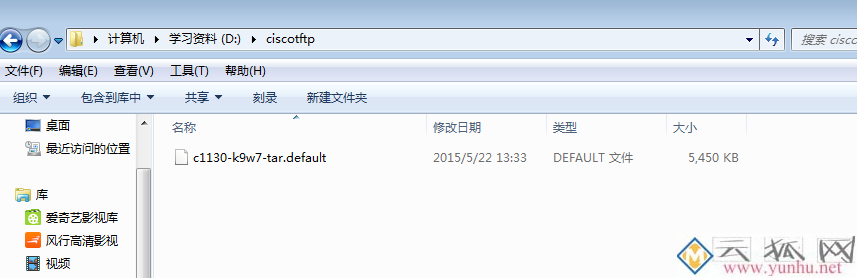

TFTP的服务器主机ip地址设置为10.0.0.2 255.0.0.0 镜象文件改名为"c1240-k9w7-tar.default"(IP地址和镜像文件名这样改从后面的提示中可以知道是为什么)

思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置 思科瘦AP转胖AP AIR-LAP1131AG-C-K9配置
